Hexagon M16 Flanged Prevailing Torque Lock Nut Din 6927 Class 8 Resist Loosening

Shanghai Summery Industrial Machine Co. , Ltd.

Hexagon M16 Flanged Prevailing Torque Lock Nut Din 6927 Class 8 Resist Loosening

Brand Name : summery

Model Number : DIN6927

Certification : ISO7044

Place of Origin : China Shanghai

MOQ : Negotiable

Price : Negotiation

Payment Terms : Western Union, L/C, D/A, D/P

Supply Ability : 10000000

Delivery Time : 7-10days

Packaging Details : Poly bags

Product name : Prevailing torque type all-metal Hex flange nut

Material : steel

Project : DIN6927/ISO7044

Size : M16

Grade : 8

Surface : dacromet

Contact Now

Prevailing torque type all-metal Hex flange nuts

This International Standard specifies the characteristics of prevailing torque type all-metal hexagon flange nuts and threads from M5 to M20 inclusive, in product grade A for threads up to and including M16 and product grade B for threads above M16, and with property classes 8, 9, 10 and 12.

If you are looking for flange head screws, please contact us for further information.

Hex flange nuts hardness test

For routine inspection, hardness tests may be carried out on the bearing surface of the nut and the hardness shall be taken as the mean of three values spaced 120" apart. In case of dispute, the hardness tests shall be carried out on a longitudinal section through the nut axis and with impressions placed as close as possible to the nominal major diameter of the nut thread.

The Vickers hardness test is the reference test and where practicable a load of HV30 shall be applied.

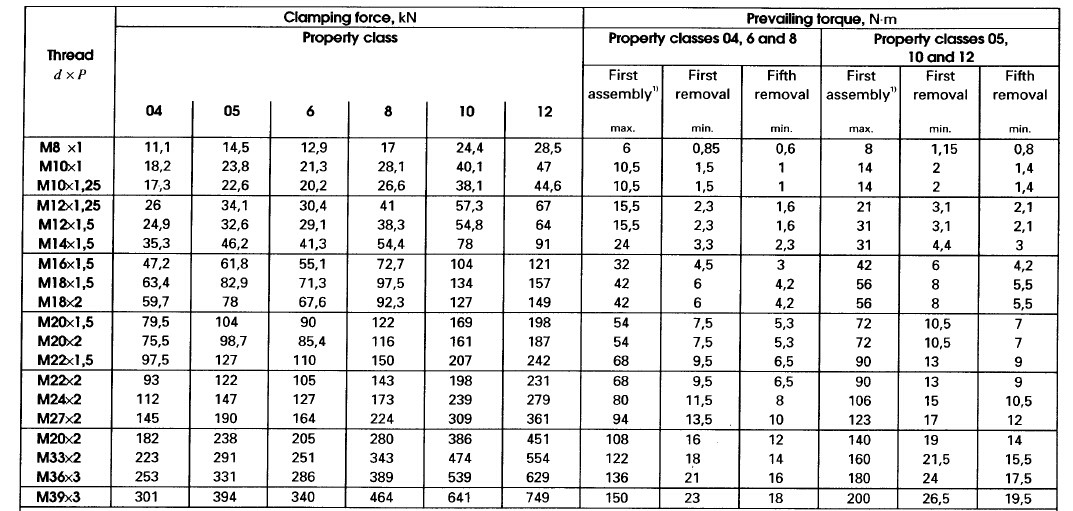

clamping forces and prevailing torques for hex flange nuts with fine pitch thread

Hexagon M16 Flanged Prevailing Torque Lock Nut Din 6927 Class 8 Resist Loosening

Hexagon M16 Flanged Prevailing Torque Lock Nut Din 6927 Class 8 Resist Loosening

Hex flange nuts figure
